Wavelet Transform: Multi-Resolution Signal Analysis

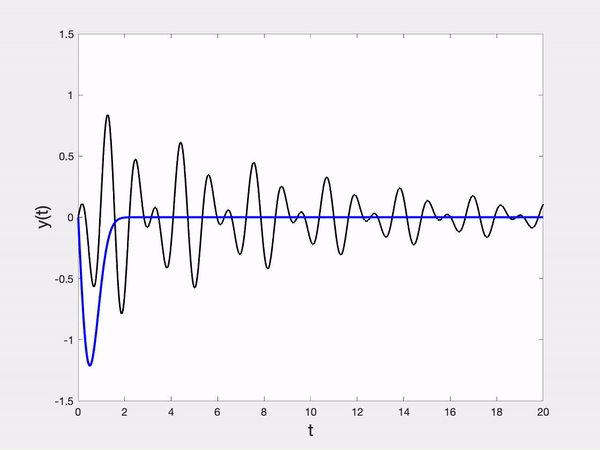

Introduction to Wavelet Transform

The wavelet transform is a powerful mathematical technique for analyzing signals across multiple scales and resolutions. Unlike the Fourier transform, which represents signals as sums of sinusoids, the wavelet transform decomposes signals using wavelets oscillatory functions that are localized in both time and frequency domains.

This localization property makes wavelets particularly effective for analyzing non-stationary signals, where frequency content changes over time. By providing both time and frequency information simultaneously, wavelet transforms overcome a fundamental limitation of the Fourier transform, which only provides frequency information.

Since their development in the 1980s, wavelet transforms have revolutionized signal processing, image compression, data analysis, and numerous scientific fields. Their ability to efficiently represent signals with discontinuities and sharp transitions has made them indispensable tools in applications ranging from JPEG2000 image compression to detecting gravitational waves in astrophysics.

Mathematical Foundations

At the core of wavelet analysis is the concept of a wavelet a small wave-like oscillation with finite duration and zero net area. Mathematically, a wavelet must satisfy certain admissibility conditions to ensure that the transform is invertible and the original signal can be reconstructed.

Mother Wavelet

A mother wavelet ψ(t) is the prototype function from which all other wavelets in the analysis are derived. It must satisfy:

• Finite energy: ∫|ψ(t)|² dt < ∞
• Zero mean: ∫ψ(t) dt = 0
• Admissibility condition: C_ψ = ∫|Ψ(ω)|²/|ω| dω < ∞, where Ψ(ω) is the Fourier transform of ψ(t)

Wavelet Family

From the mother wavelet, a family of wavelets is generated through scaling and translation:

where:

• a is the scaling parameter (a ≠ 0), controlling the dilation
• b is the translation parameter, controlling the position

The factor |a|^-1/2 ensures energy preservation across scales.

Types of Wavelet Transforms

There are several types of wavelet transforms, each with specific properties and applications.

Continuous Wavelet Transform (CWT)

The continuous wavelet transform of a signal f(t) is defined as:

where ψ^* denotes the complex conjugate of ψ.

The CWT provides a highly redundant representation, mapping a one-dimensional signal to a two-dimensional time-scale plane. This redundancy makes the CWT useful for analysis and feature extraction but less efficient for compression or reconstruction.

Discrete Wavelet Transform (DWT)

To address the redundancy of the CWT, the discrete wavelet transform samples the time-scale plane at discrete points. Typically, dyadic sampling is used, where:

for integers j and k. This leads to the wavelet family:

The DWT coefficients are then:

With proper choice of the mother wavelet, the DWT can form an orthonormal basis, allowing perfect reconstruction of the signal from its wavelet coefficients.

Stationary Wavelet Transform (SWT)

Also known as the undecimated or translation-invariant wavelet transform, the SWT modifies the DWT to make it shift-invariant by removing the downsampling operations. This redundancy makes the SWT more robust to signal shifts but increases computational complexity.

Wavelet Packet Transform (WPT)

The wavelet packet transform extends the DWT by decomposing both approximation and detail coefficients at each level, creating a full binary tree of subbands. This provides a richer analysis, allowing adaptive basis selection for optimal signal representation.

Multi-Resolution Analysis

Multi-resolution analysis (MRA) provides a formal framework for understanding the wavelet transform, particularly the DWT. Developed by Stephane Mallat and Yves Meyer, MRA decomposes a signal into a coarse approximation plus a sequence of progressively finer details.

Scaling Function

In addition to the wavelet function ψ(t), MRA introduces a scaling function φ(t) (also called the father wavelet) that complements the wavelet by capturing low-frequency content. The scaling function satisfies:

Like wavelets, scaling functions form a family through dilation and translation:

Two-Scale Relations

The scaling function and wavelet function are related through the two-scale relations:

where h[k] and g[k] are low-pass and high-pass filter coefficients, respectively, related by:

Nested Approximation Spaces

MRA defines a sequence of approximation spaces V_j such that:

• ... ⊂ V₂ ⊂ V₁ ⊂ V₀ ⊂ V_-1 ⊂ V_-2 ⊂ ...
• ∩_j∈Z V_j = {0}
• ∪_j∈Z V_j is dense in L²(ℝ)
• f(t) ∈ V_j ⟺ f(2t) ∈ V_j-1
• {φ_0,k(t) = φ(t-k), k∈Z} forms an orthonormal basis for V₀

The detail spaces W_j are defined as the orthogonal complement of V_j in V_j-1:

This leads to the wavelet decomposition:

Wavelet Families

Numerous wavelet families have been developed, each with specific properties suited to different applications.

Haar Wavelet

The simplest and oldest wavelet, the Haar wavelet is defined as:

Properties:

• Simple to understand and implement
• Discontinuous, making it less suitable for smooth signals
• Excellent for detecting edges and sudden transitions

Daubechies Wavelets

Developed by Ingrid Daubechies, these wavelets (denoted DbN, where N is the order) have maximum number of vanishing moments for a given support width.

Properties:

• Orthogonal with compact support
• Higher-order wavelets are smoother but have wider support
• No explicit formula; defined by their filter coefficients

Symlets

Modified versions of Daubechies wavelets designed to be more symmetric.

Coiflets

Designed by Daubechies at the request of Ronald Coifman, these wavelets have vanishing moments for both the wavelet and scaling functions.

Biorthogonal Wavelets

These wavelets use different functions for decomposition and reconstruction, allowing properties like symmetry and exact reconstruction to be achieved simultaneously.

Meyer Wavelet

An infinitely differentiable wavelet with infinite support but effective compact support in frequency domain.

Morlet Wavelet

A complex wavelet defined as a complex exponential modulated by a Gaussian envelope, widely used in continuous wavelet transform applications.

Fast Wavelet Transform Algorithms

The discrete wavelet transform can be efficiently implemented using filter bank algorithms, making it computationally attractive for many applications.

Mallat's Algorithm

Also known as the fast wavelet transform (FWT), Mallat's algorithm implements the DWT using a cascade of filtering and downsampling operations:

1. Filter the signal with low-pass filter h[n] and high-pass filter g[n]
2. Downsample both filtered signals by a factor of 2
3. The downsampled low-pass output becomes the input for the next level
4. Repeat for the desired number of decomposition levels

For a signal of length N, the computational complexity is O(N), compared to O(N log N) for the fast Fourier transform.

Lifting Scheme

Developed by Wim Sweldens, the lifting scheme provides an alternative implementation of the DWT that:

• Requires fewer arithmetic operations than the filter bank approach
• Allows in-place calculation, reducing memory requirements
• Provides a simple way to create custom wavelets
• Naturally extends to irregular sampling grids and surfaces

The lifting scheme decomposes wavelet transforms into a sequence of simple lifting steps: split, predict, and update.

Applications

Wavelet transforms have found applications across numerous fields due to their ability to efficiently represent signals with localized features.

Signal Processing

Denoising: Wavelet thresholding techniques effectively remove noise while preserving signal features, outperforming Fourier-based methods for signals with discontinuities.

Feature Extraction: Wavelet coefficients capture time-localized features at different scales, making them valuable for pattern recognition and classification.

Image Processing

Compression: The JPEG2000 standard uses wavelet transforms to achieve better compression ratios than the DCT-based JPEG, especially at low bit rates.

Edge Detection: Wavelet transforms naturally highlight edges and transitions across multiple scales.

Fusion: Wavelet-based methods effectively combine information from multiple images, such as multi-focus or multi-sensor images.

Data Analysis

Time Series Analysis: Wavelets reveal temporal patterns at different scales, useful for analyzing financial data, climate records, and other time series.

Anomaly Detection: Transient events and anomalies are often more visible in the wavelet domain.

Scientific Applications

Astronomy: Wavelet methods have been used to detect gravitational waves, analyze cosmic microwave background radiation, and identify structures in galaxy distributions.

Geophysics: Wavelets help analyze seismic data, identify geological structures, and characterize fractal properties of landscapes.

Biomedical: Applications include ECG/EEG analysis, medical image enhancement, and protein structure analysis.

Computer Graphics

Surface Representation: Wavelets provide multi-resolution representations of 3D surfaces, enabling progressive transmission and level-of-detail control.

Comparison with Fourier Transform

While both wavelet and Fourier transforms decompose signals into simpler components, they have fundamental differences that make each suitable for different applications.

Basis Functions

Fourier Transform: Uses sinusoids that extend infinitely in time, with perfect localization in frequency.

Wavelet Transform: Uses wavelets that are localized in both time and frequency, with a trade-off governed by the uncertainty principle.

Time-Frequency Resolution

Fourier Transform: Provides uniform frequency resolution across all frequencies but no time localization.

Short-Time Fourier Transform (STFT): Provides fixed resolution in both time and frequency.

Wavelet Transform: Provides multi-resolution analysis with better time resolution at high frequencies and better frequency resolution at low frequencies.

Suitability for Different Signals

Fourier Transform: Optimal for periodic, stationary signals and systems with linear, time-invariant behavior.

Wavelet Transform: Better suited for non-stationary signals, transients, and signals with discontinuities.

Computational Aspects

Fast Fourier Transform (FFT): O(N log N) complexity for a signal of length N.

Fast Wavelet Transform (FWT): O(N) complexity, potentially faster for large datasets.

Challenges and Limitations

Despite their versatility, wavelet transforms face several challenges in practical applications.

Wavelet Selection

Choosing the appropriate wavelet family and parameters for a specific application remains somewhat of an art. The optimal choice depends on signal characteristics and the intended application, often requiring experimentation.

Boundary Effects

Finite-length signals require special handling at boundaries to avoid artifacts. Various extension methods (symmetric, periodic, zero-padding) address this issue but can introduce their own distortions.

Shift Variance

The discrete wavelet transform is not shift-invariant a small shift in the input signal can cause significant changes in wavelet coefficients. The stationary wavelet transform addresses this issue but at the cost of increased redundancy and computational complexity.

Directional Limitations

Standard separable 2D wavelet transforms have limited ability to represent directional features efficiently. Extensions like curvelets, contourlets, and shearlets have been developed to better capture directional information in multidimensional signals.

Conclusion

The wavelet transform represents a significant advancement in signal processing and analysis, providing a powerful framework for multi-resolution analysis of signals and images. Its ability to efficiently represent signals with localized features in both time and frequency domains has led to breakthroughs in compression, denoising, feature extraction, and numerous scientific applications.

While the Fourier transform remains invaluable for analyzing stationary, periodic signals, the wavelet transform excels at handling non-stationary signals, discontinuities, and transient phenomena. The complementary nature of these transforms has enriched our ability to analyze and process complex signals across diverse fields.

As computational capabilities continue to advance, wavelet-based methods are likely to find even broader applications, particularly in areas requiring analysis of massive, complex datasets with multi-scale features. The ongoing development of new wavelet families and extensions to higher dimensions ensures that wavelet analysis will remain at the forefront of signal processing and data analysis techniques.
